Stagemaker SL
For loads up to 2 tons (2000 kg)
GET QUOTE NOW |
Designed for Entertainment
- Designed to withstand demanding conditions, the hoist meets IP66 protection standards, ensuring reliable performance in outdoor and weather-exposed applications.
- Oval shape body minimizes the chance of the chain catching on the motor in the inverted (body down) position, reducing the risk of chain jamming.
- The hoist body is powder coated with black (RAL 7021), protective 70 µm epoxy paint, allowing it to perform under the most extreme conditions: 14°F to 104°F (-10°C to +40°C).
- Ergonomic concept for the retractable, rubber clad handgrips allow for easy loading and unloading of the hoist from road cases.
- Rubber bumpers located on the hoist corners provide added protection for the hoist during loading and unloading while in road case.
More Safety
- Stagemaker SL is D8+ as standard and D8 with removal of the secondary brake.
- IP66 and NEMA 4X protection as standard for the entire hoist.
- The clutch placement ensures the brake, not the clutch, holds the load.

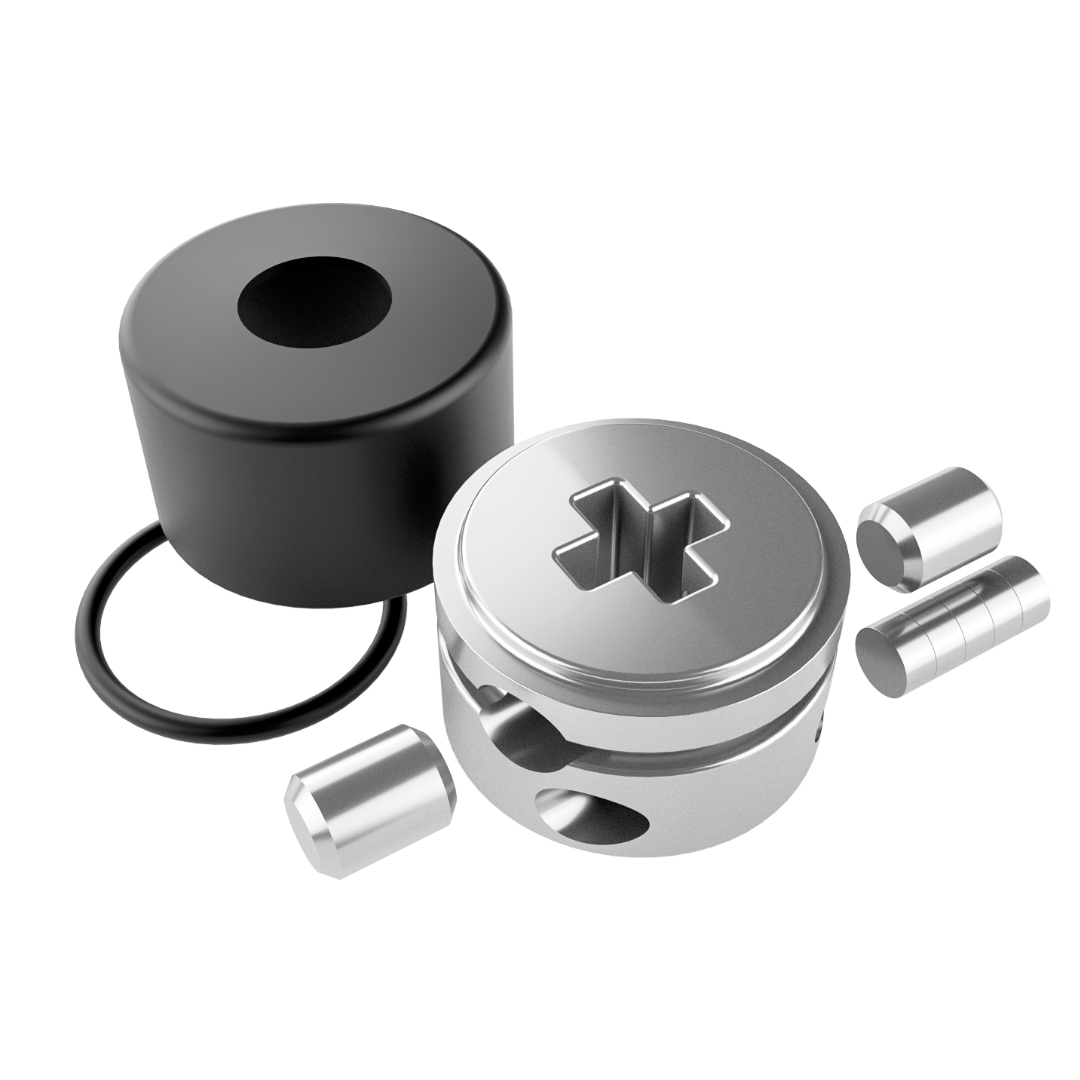

- Magnetic limit switch as standard on all SL5 and SL10 (version B) with standard Limitflux.
- Rotary gear limit switches also available.
- Black electro galvanized lifting chain as standard manufactured specifically for Stagemaker.
- Hoist motor with integral thermal protection to prevent overheating.
Operating Convenience
- High capacity and high strength chain bag made of high-grade black fabric, is both removable and reversible (body up or body down configuration).
- Can operate in normal position (body up) and inverted position (body down) for different rigging scenarios.
- Meets NEMA 4X and IP66 standards.
- The motors are TENV, insulation class F.
- Lifting hook has an ergonomic, rubber clad, gripping surface.
- Motor design provides consistent speeds when both fully loaded or unloaded.
- Electrical components designed for “plug-and-play” connectivity.
- Operating sound level down to 65 dB.
- Rotating upper and lower hooks.
- Built in retractable handles.
Better Service
Maintenance operations are now simpler, faster and more economical:

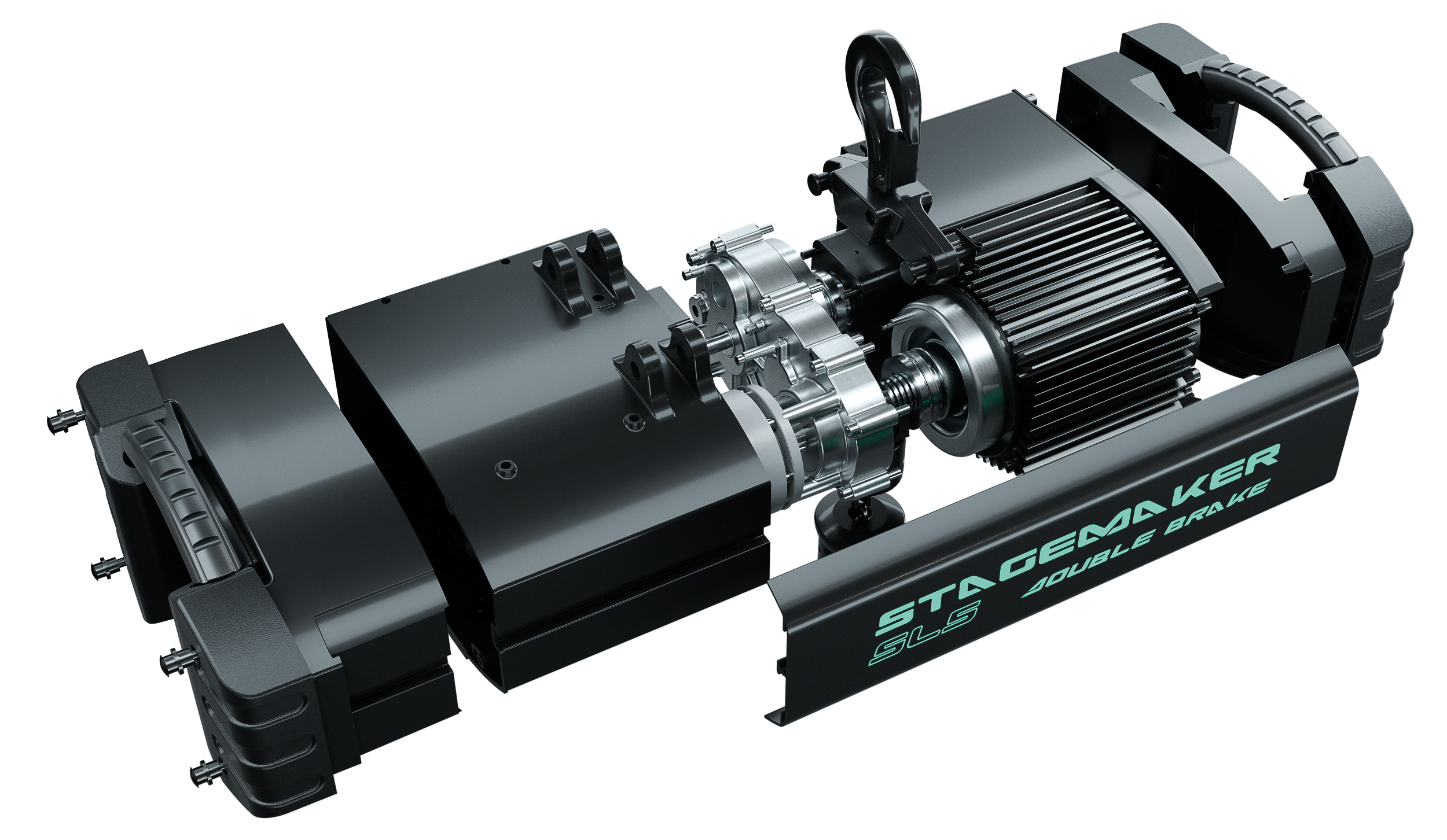

- Easy to service hoisting motor is separate from hoist frame.
- Easy visual access to the brake for inspections.
- Easy access to the torque limiter.
- Easy access to PCB card and safety fuse.
Better Innovation

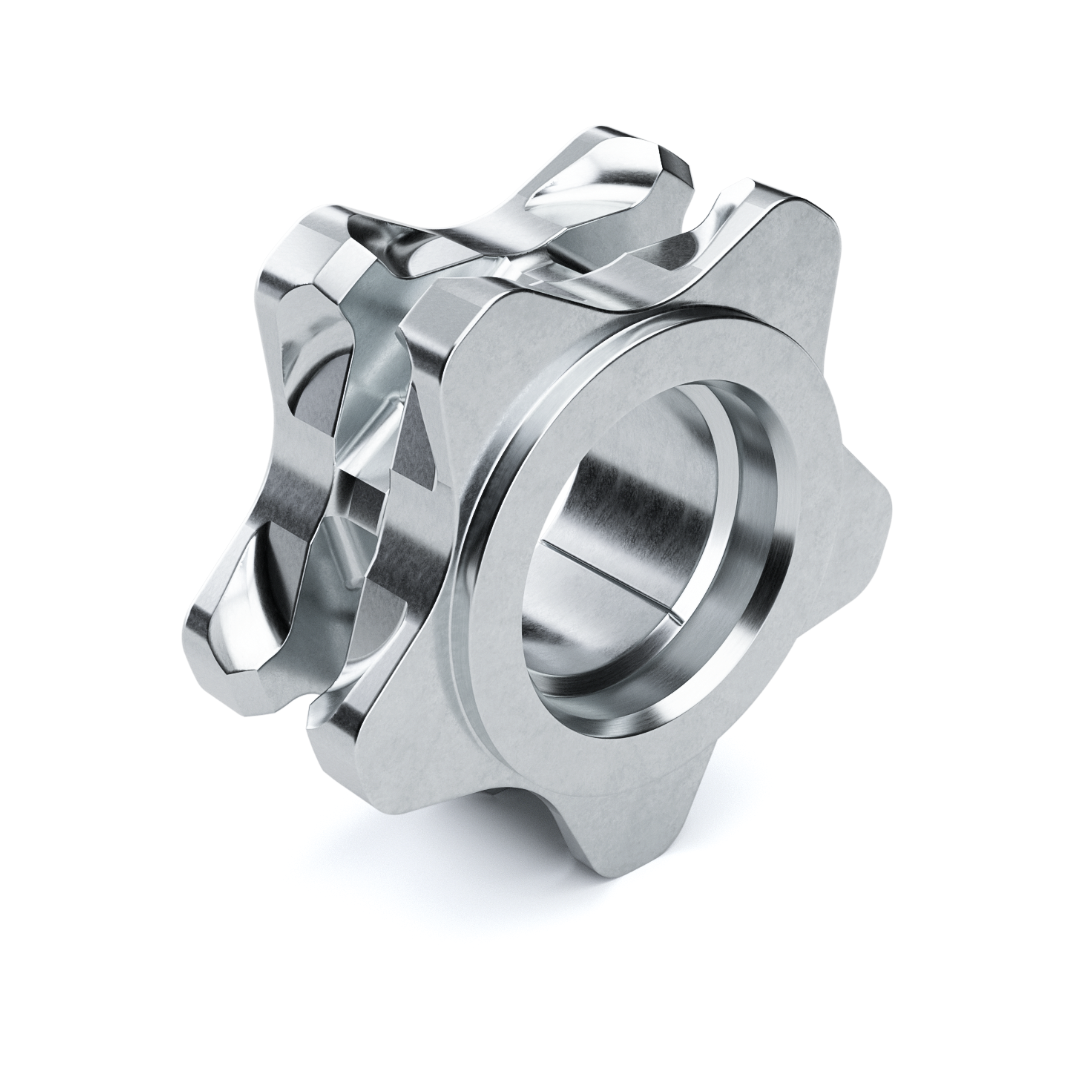

The “Perfect Push MKII”, patented concept, 5 pocket load wheel. This innovation provides improved chain guiding and chain flow, to help reduce the risk of chain jamming.

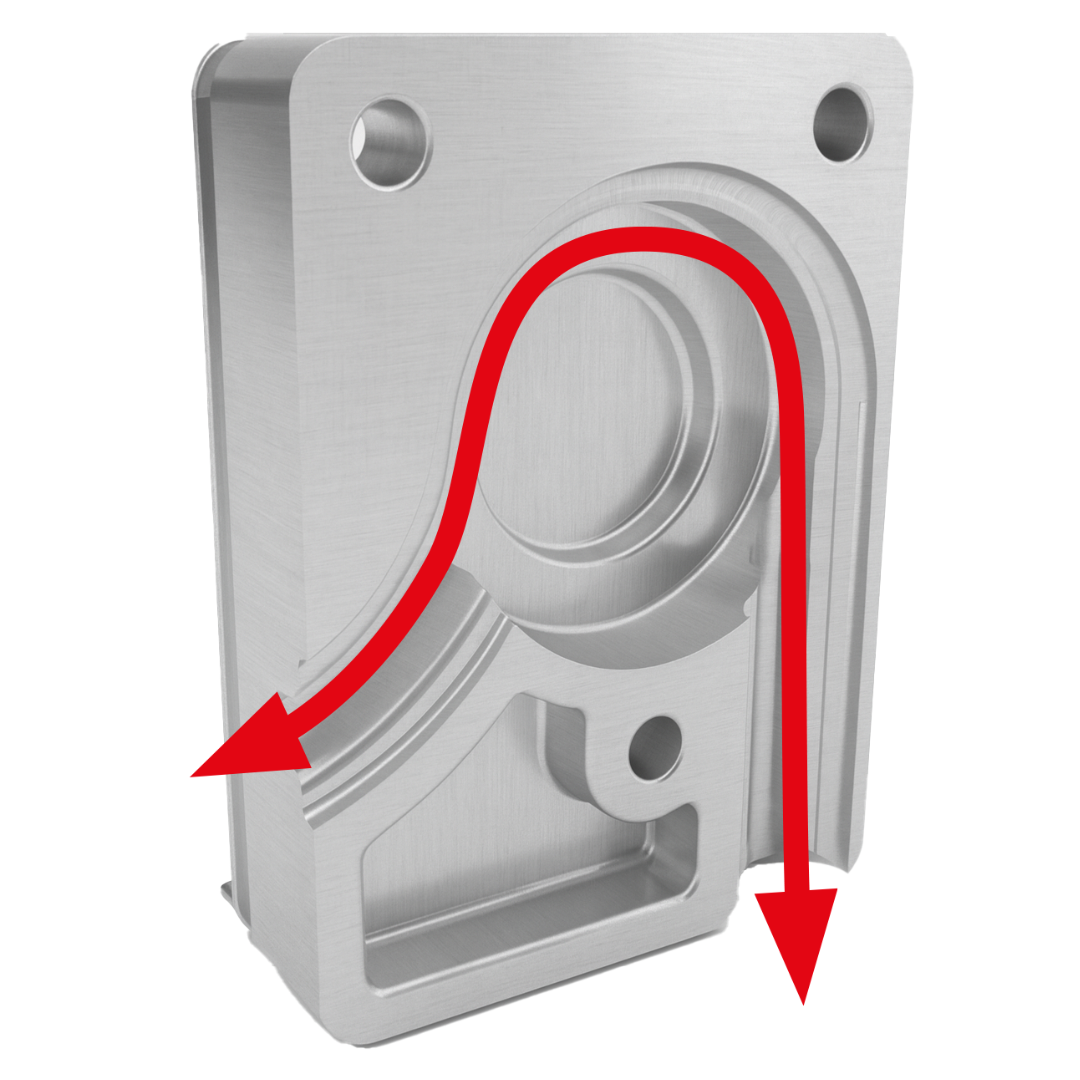

Design provides a horizontal flow of the chain as it comes off the load wheel. This design, along with the high strength aluminum construction, allows for a more fluid flow of the chain into the chain bag and helps to reduce the risk of chain jamming. Drain in housing to avoid water collection in load wheel compartment.

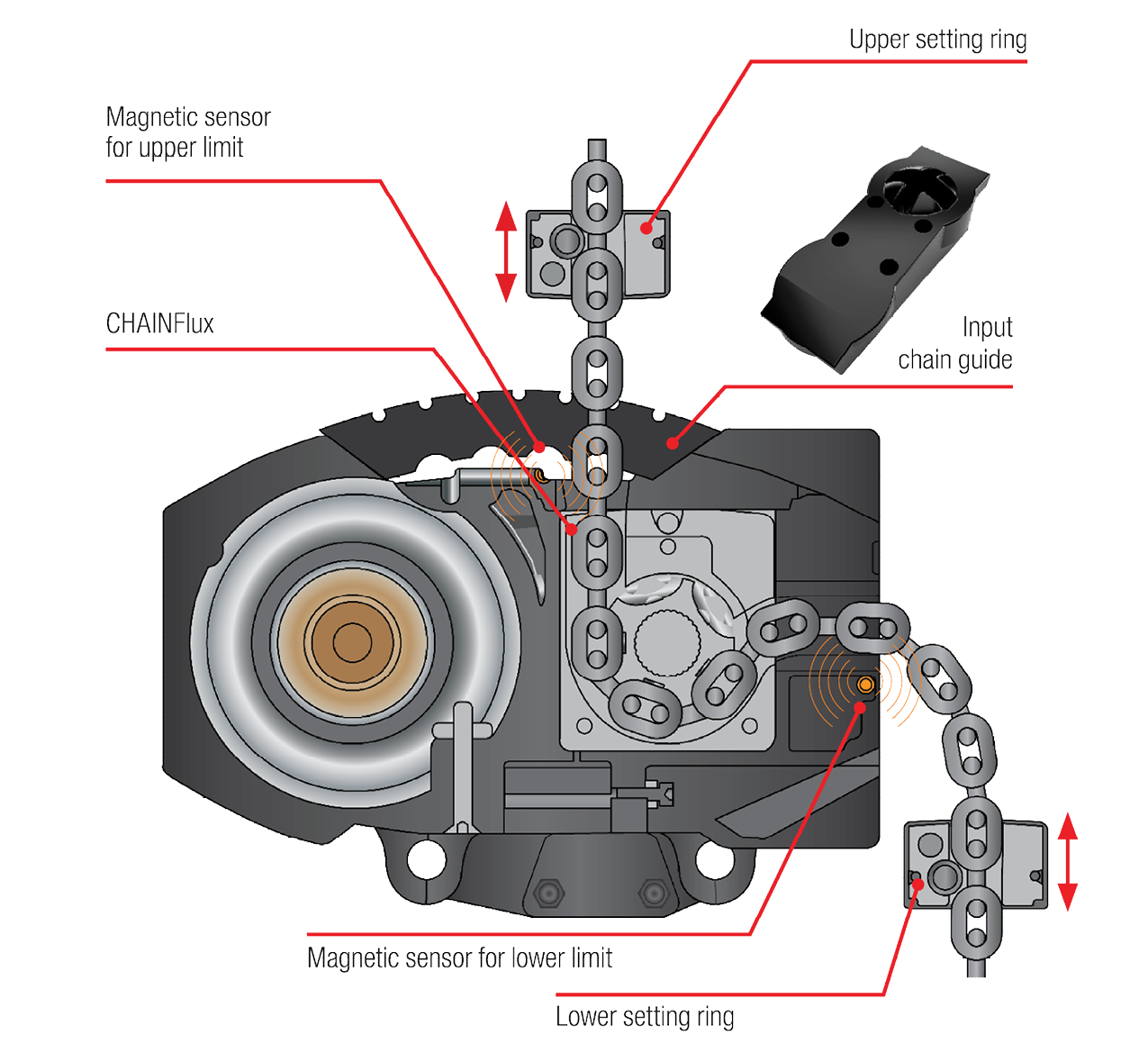

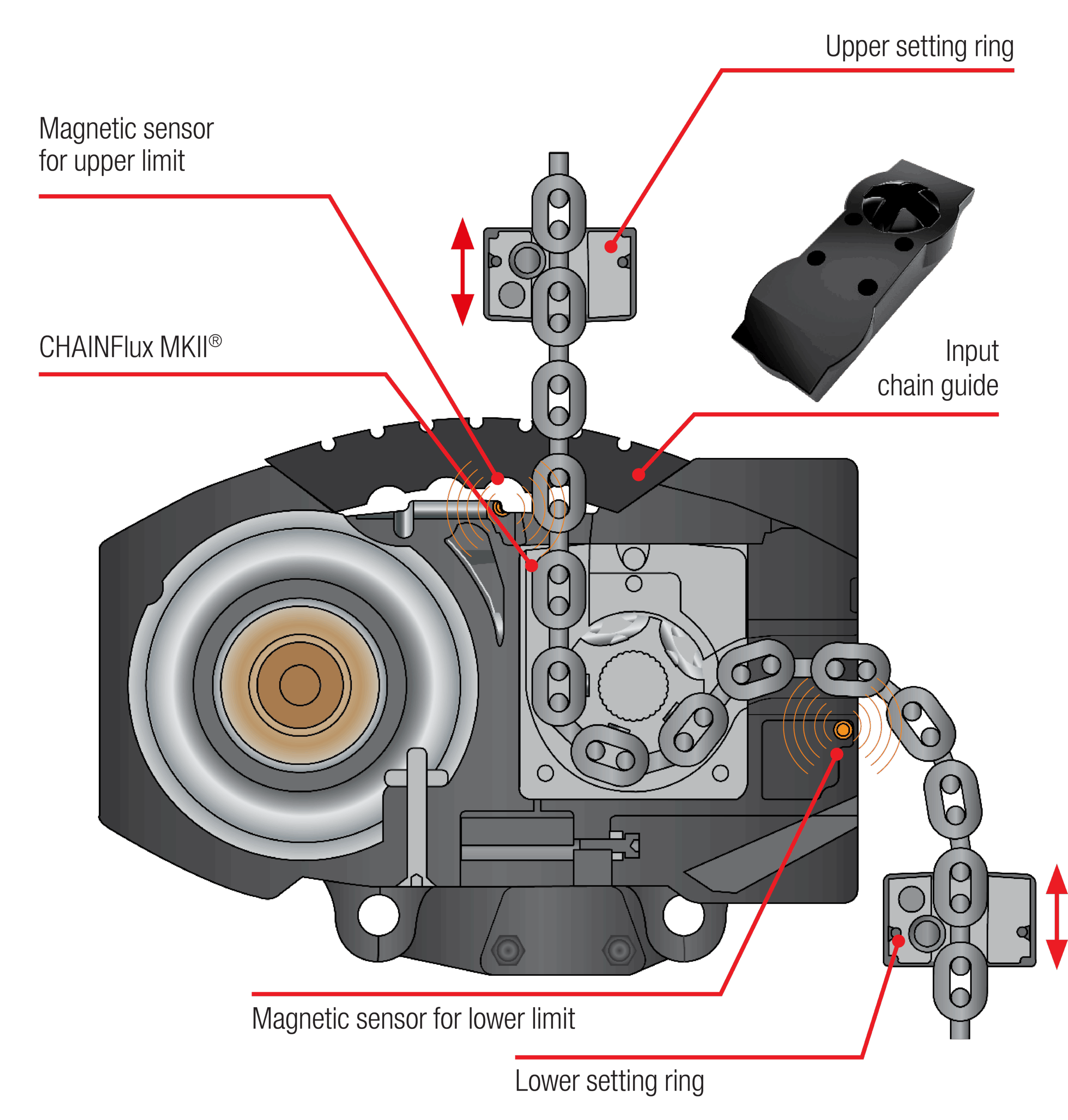

The Limitflux is a built-in limit switch device in the CHAINFlux MKIII that’s allow to control setting of hoist or hook position in industrial suspension or climbing configuration. Accuracy of the system is given at one link of lifting chain. The setting of the limit is operated by two magnetic ring (upper and lower) which can be easily moved and set along the lifting chain.
